INTRODUCTION
RS-730-800-3 positive and negative pressure multi-station plastic thermoforming machine， uses internationally advanced plastic sheet forming technology. It is a plastic sheet forming equipment with mechanical, pneumatic and electrical integrated design. It can automatically complete all actions such as loading, feeding, heating, forming, punching, cutting, stacking, finished product transportation, and edge material winding.
It is suitable for processing different materials, such as A-PET, R-PET, C-PET, BOPS, HIPS, PP, PLA, PVC and barrier materials, processing high transparency, high stretch, shallow stretch, round, square, upper and lower two-way stretch, flanged and other products, including trays, lids, fruit and vegetable boxes, flower pots, shells, seedling trays and plates, etc.
It can make some products which unable to be made in one station thermoforminging machine, like for example: PLA products, plastic lids or containers which has holes, the packing containers (fruit box, egg trays) with body and cover connected etc.
MACHINE STRUCTURE

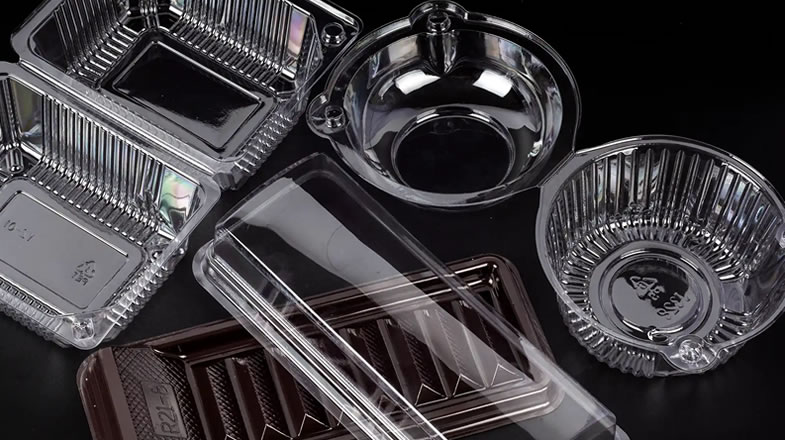

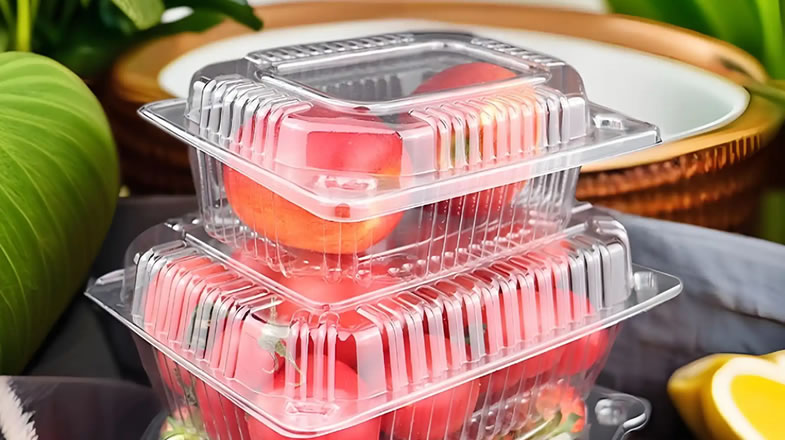

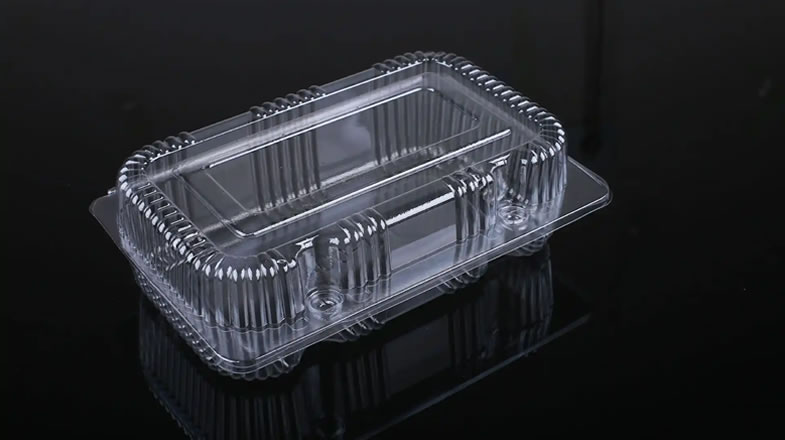

PRODUCTS RANGE
FEATURES AND ADVANTAGES
1. High degree of standardization, complete functions, safe, efficient, energy-saving and hygienic.
2. It integrates mechanical, pneumatic and electrical integration, and is controlled by microcomputer and programmable controller (PLC).
3. Easy-to-operate human-machine interface, and has the function of remote connection.
4. Electric lifting, double-station large-diameter unwinding, allowing a single person to load coils weighing up to 600KG.
5. Servo feeding, stepless adjustment of sheet length, high speed, accuracy and stability.
6. The upper and lower electric heating furnaces are used for four-stage heating and protection to reduce the impact of air convection on temperature, so that the product molding is stable, from 0-400 degrees in just 3 minutes, improving production efficiency. The electric heating furnace can automatically remove the device.
7. A new real-time distributed digital dynamic hot forming temperature control system is used to control the temperature of the tile at a single point, and it has automatic compensation control, with an accuracy of ±1℃. Energy saving of about 15% and extended furnace plate service life.
8. The quick mold change system can conveniently, quickly, accurately and safely change molds, reduce machine downtime, reduce labor waste, and improve production efficiency.
9. The mold opening and closing of the forming, punching and cutting stations are controlled by servo motors, with high precision, low wear, fast speed and low noise. Each station is supported by four columns, combined with a five-point structural connecting rod, which has good stability.
10. The unique vertical stacking concept ensures continuous stacking of products.
11. Automatic counting of finished product output, with production data memory function, can store 90 sets of operating data.
12. Combined with the edge material winding device, the entire production process is clean, without burrs and waste.
13. The design of the electrical cabinet is simple and refreshing, simplifying the machine assembly and wiring installation process.
SPECIFICAITON
|
Sheet Materials |
PP/PS/PET/PLA/PE/CPET |
Air Consumption |
4m³/min |
|
Sheet Thickness |
0.2-1.5mm |
Weight |
14500kg |
|
Forming Area |
730*800mm |
Total Installed Power |
185kw |
|
Width Of Sheet |
400-800mm |
Heating Power |
140kw |
|
Upper Forming Depth |
100mm |
Feeding Motor |
4.4kw |
|
Bottom Forming Depth |
130mm |
Control Forming Plug Motor Power |
4.4kw |
|
Max Speed |
48 moulds/min |
Stacking Motor |
2.9kw |
|
The Longest Knife |
12m |
Winding Waste Of Edge Sheet Motor Power |
0.4kw |
|
Dimension |
11500*2350*2700mm |
Forming Motor |
7.5kw*2 |
|
Forming clamping force |
750kn |
Cutting Motor |
7.5kw*1 |
|
Punching clamping force |
900kn |
|
|
PARTNER BARANDS
ESSENTIAL COMPONENT
Loading sheet part
Load automatically, lower human resource cost.
Proximity switch clever control, getting the rid of falling down of the sheet by conveying too fast.
Double stations, big diameter, reduce the frequency of changing sheet coil, improve the the production efficiency.
Max undertake roll of sheet
Weight:600kg, Diameter 800mm.
Feeding sheet part
Automatic feeding reduces human resource costs.
Actively transport the sheet and reduce the load on the conveying servo motor.
Cleverly control the proximity switch to prevent the sheet from falling too quickly during transportation.
Human-machine interface
Controlled by microcomputer and programmable controller (PLC), all action programs can be operated through the human-machine interface, simple and convenient, 15-inch touch screen.
Heater
1. Vacuum insulation cotton is installed in the heater, which has a fast reaction speed, short processing time and energy saving.
2. The furnace body is divided into two layers, the layout of the heating tiles is optimized, so that the plate is heated evenly.
Molding station
1. Mold changing auxiliary mechanism, using sliding guide rails and support rods to achieve fast mold change, saving time and effort.
2. Adopting high-power servo motor drive, high precision, high efficiency and low noise.
Molding mold
The working principle is a combination of positive and negative pressure, and some nylon plugs are used to assist stretching in the mold to make it have stronger molding ability.
There is cooling water in the mold cavity to speed up the cooling speed and make demolding easier.
Guide head structure
The workstation is supported by four columns (45# steel, hard chrome plated).
The integrated mold table (QT-600 steel) is made by a high-precision CNC milling machine. Therefore, it is wear-resistant, stable, and accurate, which prolongs the service life of the equipment.
A five-point-connecting-rod structure
This structure design provides more stable operation and faster speed.
Mold change structure
The punching hole station has the same mold changing structure as the cutting station.Greatly reduce mold change time and labor costs, improve production efficiency and safety factor, and provide convenience for your diversified product chain.
Servo motor
The station mold closing, forming auxiliary stretching, and pull-tab parts are all driven by servo motors, which have fast speed, low noise, high precision, and high efficiency.
Servo-controlled conveyor belt
Set conveyor belt parameters directly on the operation screen.
Freely adjust and control conveying length and speed.
Rewinding waste of edge sheet
Our multi-station thermoformers feature a winding unit with torque motor to efficiently collect the offcuts and wind them into a roll with one side retractable, which can be conveniently removed at the end of production.
This advanced waste management system improves operating efficiency and cleanliness, making multi-station thermoformers ideal for high-quality and sustainable production.
